VCTF-L High Flow Cartridge Filter

Short Description:

Filter element: high flow pp pleated cartridge. Structure: vertical/horizontal. High Flow Cartridge Filter is designed to handle high volume liquid while effectively removing contaminants. It has a larger surface area than conventional filters for higher flow rates. This type of filter is typically used in industrial applications where large volumes of fluid need to be processed quickly. High flow design ensures minimal pressure drop and provides excellent filtration efficiency. It provides a cost-effective solution by reducing the frequency of filter changes and saving operating and maintenance costs.

Filtration rating: 0.5-100 μm. Cartridge length: 40, 60 inches. Cartridge quantity: 1-20 pcs. Applies to: high-throughput working conditions.


Product Detail

Introduction

VITHY® VCTF-L High Flow Cartridge Filter adopts vertical or horizontal structure (conventionally vertical structure). Medium and large systems with flow rates of more than 1000 m³/h adopt the horizontal structure and are equipped with 60-inch filter cartridges.

Compared with the traditional basket filter cartridge, High Flow Cartridge Filter has many times the filtration area. Its combination of more than 50% aperture ratio and straight-through structure can bring the maximum flow rate and the smallest differential pressure, greatly reducing the overall size and weight, lowering investment and operating costs, decreasing the frequency of cartridge replacement, and saving labor costs.

It can remove trace number of fine impurities of slurry, and has high precision, high efficiency, and large dirt-holding capacity.

VCTF-L High (1)
VCTF-L High (4)

Features

● Micron rating up to 0.5 μm.

● Large effective filtration area, low pressure drop, and high flow rate.

● The all-PP material makes the filter cartridge have good chemical compatibility and is suitable for a variety of liquid filtration.

● Internal components are precision machined to ensure no potential leakage from all filter cartridges sides.

● Employing a deep fine membrane material and a scientifically designed multi-layer gradient pore size filtration structure significantly enhances the filter cartridge's capacity to hold dirt. This in turn prolongs the service life of the filter cartridge while also reducing costs associated with its use.

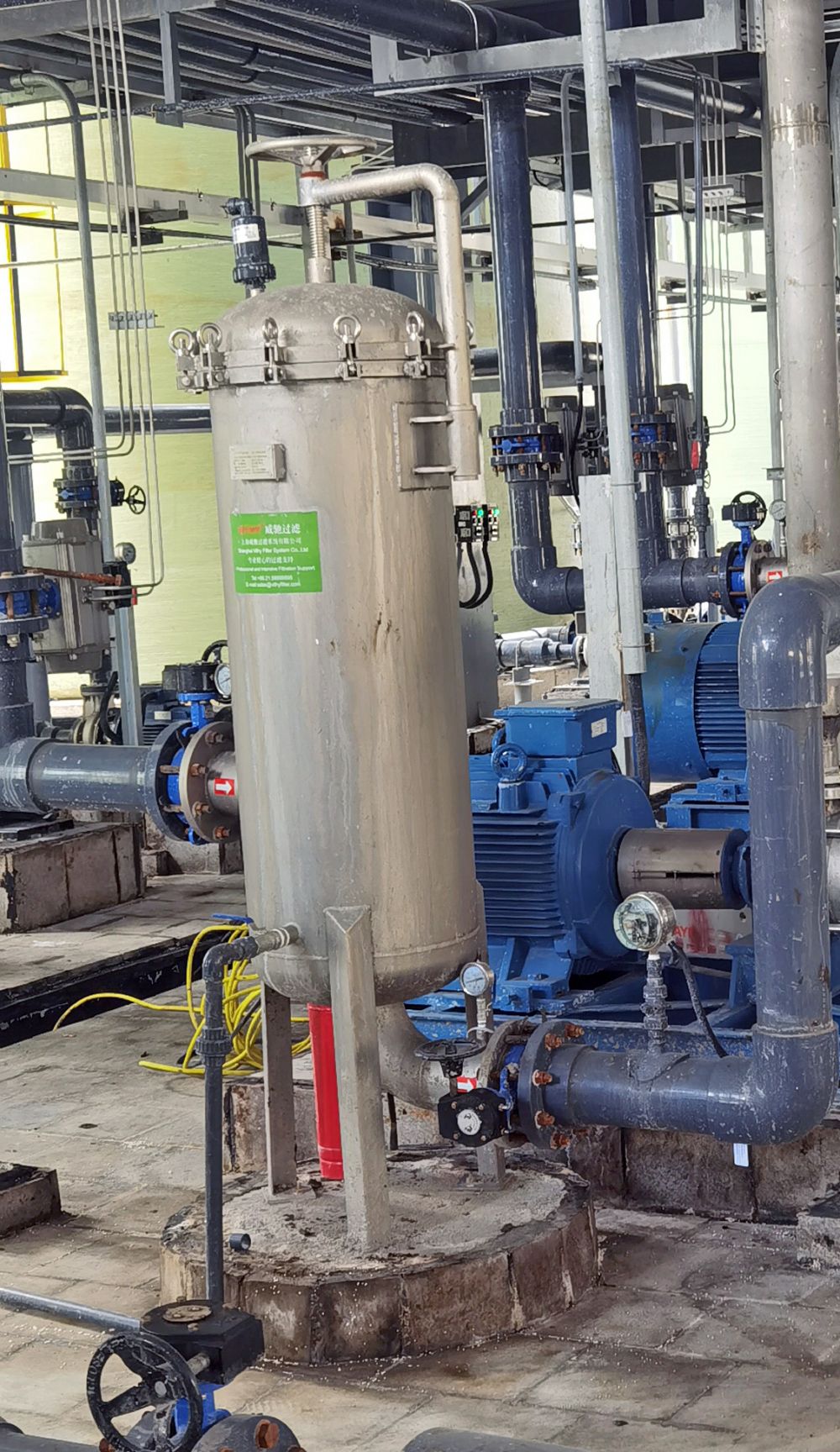

VCTF-L High (2)
VCTF-L High (3)

Specifications

No.

Number of Cartridges

Filtration Rating (μm)

40 Inch/ Maximum Flow Rate (m3/h)

Design Pressure (MPa)

60 Inch/ Maximum Flow Rate (m3/h)

Operating Pressure (MPa)

 Inlet/Outlet Diameter

1

1

0.1-100

30

0.6-1

50

0.1-0.5

DN80

2

2

60

100

DN80

3

3

90

150

DN100

4

4

120

200

DN150

5

5

150

250

DN200

6

6

180

300

DN200

7

7

210

350

DN200

8

8

240

400

DN200

9

10

300

500

DN250

10

12

360

600

DN250

11

14

420

700

DN300

12

16

480

800

DN300

13

18

540

900

DN350

14

20

600

1000

DN400

Applications

VCTF-L High Flow Cartridge Filter is suitable for reverse osmosis system prefiltration, various process water filtration in the food and beverage industry, deionized water prefiltration in the electronics industry, and filtration of acids and alkalis, solvents, quenched cold water and other filtration in the chemical industry.
