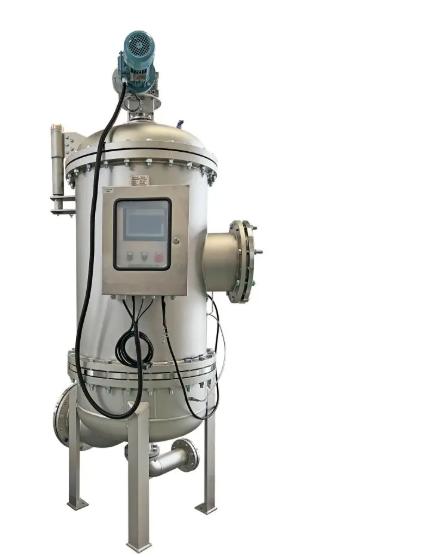

The VSRF automatic mesh filter delivers superior performance in water filtration. Its advanced automatic mesh filter technology and automatic self-cleaning features set it apart from a typical automatic screen filter. Users experience fewer maintenance demands and greater reliability. These benefits support efficient irrigation and handle even the most challenging water conditions.
Key Takeaways
- The VSRF automatic mesh filter features self-cleaning technology that reduces maintenance needs and ensures continuous water flow.
- This filter handles challenging water conditions effectively, making it ideal for irrigation, industrial, and water treatment applications.
- Operators benefit from lower labor costs and improved efficiency due to the filter’s automated cleaning process and large filtration area.
How the automatic mesh filter works
Back-flushing mesh technology
The VSRF automatic mesh filter uses a stainless steel wedge mesh to trap impurities from water. This filtration mechanism separates solid particles, oily sludge, and viscous impurities with high efficiency. The mesh design allows water to pass through while holding back contaminants. When impurities build up on the mesh, the system activates its back-flushing process.
The back-flushing process relies on a unique discharge and cleaning system. The filter detects impurity accumulation and initiates cleaning automatically. The system uses a PLC controller to automate the cleaning cycle. Water flows in reverse through the mesh, flushing away trapped particles. This self-cleaning design ensures the filter maintains superior filtration performance without manual intervention.
The table below compares the VSRF automatic mesh filter with conventional filtration methods:
| Feature | VSRF Automatic Mesh Filter | Conventional Filtration Methods |
| Cleaning Method | Self-cleaning via back-flushing | Manual cleaning or replacement |
| Automation | PLC system automates the cleaning process | Typically requires manual intervention |
| Filtration Continuity | Continuous filtration without interruption | Interruption during cleaning or replacement |
| Impurity Detection | Initiated by accumulation of impurities on mesh | Often relies on visual inspection or pressure drop |
| Patents | 4 patents for unique discharge and cleaning system | Generally no patents for standard methods |
The automatic mesh filter stands out for its backwashing efficiency. The filter cleans itself quickly and resumes operation, which reduces downtime and labor costs. Operators do not need to stop the system for cleaning, so water filtration continues without interruption.
Self-cleaning and automation
The VSRF automatic mesh filter features automatic self-cleaning that activates based on pressure differential or a timer. When the pressure drop across the mesh reaches 0.5 bar (7 psi), the system starts the cleaning cycle. The cleaning cycle lasts only 12 to 15 seconds, which minimizes disruption to water flow. The flush discharge is small, so waste management becomes easier.
The table below highlights the automatic activation and operational continuity:
| Feature | Description |
| Automatic Activation | Initiated by pressure differential or timer, ensuring timely cleaning without stopping filtration. |
| Pressure Differential Trigger | Activates cleaning when pressure drop reaches 0.5 bar (7 psi), maintaining continuous operation. |
| Cleaning Cycle Duration | The flush cycle lasts 12 to 15 seconds, allowing for minimal disruption to the flow of filtered water. |
| Waste Management | The flush discharge is minimized, resulting in lower waste during the cleaning process. |
The automatic mesh filter provides automatic filtration for challenging water conditions. The system handles high particulate content, oily sludge, and viscous impurities. The automatic screen filter design allows for continuous operation, even in demanding environments. The filter protects downstream equipment and extends the life of machinery.
Operators benefit from reduced maintenance and reliable performance. The automatic mesh filter offers a self-cleaning design that saves time and labor. The system delivers superior filtration performance for irrigation, industrial, and water treatment applications.
Unique features and benefits
Large filtration area and high flow rates
The VSRF automatic mesh filter uses multiple wedge mesh cartridges to create an ultra-large filtration area. This design supports flow rates up to 8000 m³/h. The filter maintains a consistent flow, even when water contains high levels of particulates. Operators see reliable water circulation in their systems. The automatic mesh filter ensures continuous water flow, which improves water use efficiency.
The automatic screen filter stands out for its ability to handle large volumes of water. Facilities that need higher water efficiency benefit from this advanced technology. The filter’s structure allows water to move smoothly through the mesh, trapping impurities without slowing down water distribution. This feature supports irrigation performance and industrial processes that require steady water supply.
Tip: A larger filtration area means fewer clogs and less downtime. Operators spend less time on maintenance and more time focusing on system performance.
Versatility for efficient irrigation and industry
The VSRF automatic mesh filter offers a wide filtration rating range from 25 to 5000 μm. This flexibility makes the filter suitable for various applications, including agriculture, water treatment, and industrial use. The automatic screen filter adapts to different water sources and impurity levels. It protects downstream equipment from blockages and scaling, which extends the life of pumps and machinery.
The filter’s compact design saves space during installation. Facilities can fit the filter into tight areas without sacrificing performance. The automatic mesh filter reduces maintenance by cleaning itself and using only the necessary amount of water for flushing. This feature lowers operating costs and supports efficient irrigation.
Operators see clear benefits in reduced maintenance frequency and costs. The table below shows how automatic mesh filters impact maintenance:
| Description | Impact on Maintenance Frequency and Costs |
| Automatic, self-cleaning mesh filters reduce manual maintenance. | Decreases labor costs and maintenance frequency. |
| Filters use the exact amount of water needed, minimizing waste. | Lowers operating costs due to reduced water use. |
| Models like Sigma Pro and Mini Sigma are designed for low upkeep. | Further reduces maintenance needs and costs. |
The automatic mesh filter improves water use efficiency in every application. It supports reliable water circulation and protects valuable equipment. Operators choose this filter for its ability to deliver continuous water flow and reduce maintenance. The filter’s versatility makes it a smart choice for agriculture, industry, and water treatment systems.
Comparison with standard filters
Performance and reliability
The VSRF automatic mesh filter delivers a higher level of performance compared to traditional filters. Standard filters often require manual cleaning, which interrupts water flow and reduces efficiency. The automatic mesh filter uses a self-cleaning process that keeps water moving without stopping the system. This feature ensures steady filtration, even when water contains oily sludge or high levels of particulates.
Many facilities have seen improvements after switching to automatic mesh filters.
- The Yucaipa Valley Water District struggled with turbidity and frequent maintenance using old brass strainer baskets.
- In 2019, they installed self-cleaning filters.
- The operations manager reported that the new filters needed little attention, allowing staff to focus on other important tasks.
- The result was better efficiency and less downtime.
A table below highlights key factors that influence the choice of the VSRF automatic mesh filter:
| Feature | Description |
| Filter Element | Stainless steel wedge mesh. |
| Self-Cleaning Method | Back-flushing activated by PLC when impurities accumulate. |
| Filtration Rating | 25-5000 μm. |
| Filtration Area | 1.334-29.359 m². |
| Applications | Handles oily sludge, soft and viscous impurities, and high-content hair or fiber. |
| Patents | 4 patents for unique discharge system and mechanical seal. |
Maintenance and cost savings
Automatic mesh filters reduce the need for manual labor. Operators do not have to stop the system for cleaning. The automatic cleaning cycle keeps the filter working at peak performance. This design lowers maintenance costs and extends the life of pumps and other equipment. Facilities save money on labor and repairs. The automatic mesh filter protects valuable machinery and helps maintain smooth operations.
Note: Choosing an automatic mesh filter means less downtime, fewer repairs, and more reliable water filtration.
The VSRF automatic mesh filter offers reliable performance and low maintenance for water filtration. Operators see water savings and reduced chemical use, as shown below:
| Benefit | Description |
| Water Savings | Wire mesh filters reduce the need for additional chemical treatments, leading to energy savings and lower operational costs. |
| Reduced Chemical Use | Their ability to filter particles down to 5 µm minimizes the reliance on chemicals, thus lowering environmental impact. |
| Enhanced Durability | The durability of wire mesh filters minimizes waste and extends cleaning intervals, contributing to sustainable water management. |
Industry experts expect strong growth for automatic mesh filters.
- The market will expand rapidly over the next five years.
- Government programs and increased investment in research drive innovation.
- Companies focus on developing efficient and sustainable filtration solutions.
The VSRF automatic mesh filter supports efficient irrigation, industrial, and water treatment systems. Facilities benefit from dependable operation and sustainable water management.
FAQ
How does the VSRF automatic mesh filter clean itself?
The filter uses a back-flushing process. It reverses water flow to remove trapped impurities. This process starts automatically when the system detects a pressure change.
What types of water can the VSRF filter handle?
The VSRF filter works with water containing oily sludge, viscous impurities, and high particulate content. It fits irrigation, industrial, and water treatment applications.
How often does the filter need maintenance?
Operators rarely need to perform manual maintenance. The automatic cleaning cycle keeps the filter running smoothly and reduces downtime.
